  ECU Electronic Industrial Co.,Ltd. Power Supplies


AC-DC Power Supplies

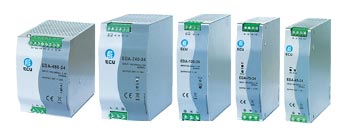

DIN-RAIL Type (Single Output)

Series Output
Power		 Model Name Input Range
(VAC,VDC)		 Output Voltage
(VDC)		 PFC Safety
Certification		 Size
(mm)
EDP 45W EDP-45-xx VAC90~264
VDC127~370		 12V, 24V, 48V x EN60950-1 126x34x102
75W EDP-75-xx 12V, 24V, 48V x 126x34x102
120W EDP-120-xx 12V, 24V, 48V x 126x40x110
240W EDP-240-xx 24V, 48V PFC 124x62x119
480W EDP-480-xx 24V, 36V, 48V PFC 124x86x128
EDA 45W EDA-45-xx VAC 90~264,
VDC127~370		 12V, 24V, 48V x UL508
EN60950-1		 126x34x102
75W EDA-75-xx 12V, 24V, 48V x 126x34x102
120W EDA-120-xx 12V, 24V, 48V PFC 126x40x110
240W EDA-240-xx 12V, 24V, 48V PFC 124x62x119
480W EDA-480-xx 24V, 36V, 48V PFC 124x85x128

AC-DC Power Supplies

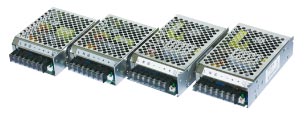

UNIT Type (Single Output)

Series Output
Power		 Model Name Input Range
(VAC)		 Output Voltage
(VDC)		 PFC Safety
Certification		 Size
(mm)
ESA 35W ESA-35-xx VAC90~264
VDC127~370		 12V, 24V, 48V - EN60950-1
 99x82x30
50W ESA-50-xx 12V, 24V, 48V - 99x82x30
75W ESA-75-xx 12V, 24V, 48V
 - 129x98x30
100W ESA-100-xx 12V, 24V, 48V - 129x98x30
150W ESA-150-xx VAC90~132
VAC180~264
VDC250~370		 12V, 24V, 48V - 159x97x30
200W ESA-200-xx 12V, 24V, 48V - 215x115x30
250W ESA-250-xx 12V, 24V, 48V - 215x115x30
350W ESA-350-xx 12V, 24V, 36V, 48V - 215x115x30
EPR 15W EPR-15-xx VAC90~264
VDC127~370		 5V ,12V, 24V, 48V - UL60950-1
TUV
EN60950-1		 79x52x29
25W EPR-25-xx 5V ,12V, 24V, 48V - 79x52x29
35W EPR-35-xx 5V ,12V, 15V, 24V, 36V, 48V - 99x81x37
50W EPR-50-xx 5V ,12V, 15V, 24V, 36V, 48V - 99x97x36
75W EPR-75-xx 5V ,12V, 15V, 24V, 36V, 48V - 129x98x38
100W EPR-100-xx 5V ,12V, 15V, 24V, 36V, 48V - 159x98x38
100W EPR-100C-xx VAC90~132
VAC180~264		 12V, 24V, 48V - 159x98x38
150W EPR-150-xx VAC90~132
VAC180~264
VDC250~370		 5V ,12V, 15V, 24V, 36V, 48V - 199x99x42
ESF 75W ESF-75-xx VAC90~264
VDC127~370		 5V ,12V, 24V, 48V PFC UL60950-1
TUV
EN60950-1		 129x98x38
100W ESF-100-xx 5V ,12V, 24V, 48V PFC 129x98x38
150W ESF-150-xx 12V ,24V, 36V, 48V PFC 159x98x38
200W ESF-200-xx 12V, 24V, 36V, 48V PFC 159x98x38
210W ESF-210-xx 12V, 24V, 48V PFC 215x115x30
320W ESF-320-xx 12V, 24V, 36V, 48V PFC 215x115x30
ESP 200W ESP-200B-xx VAC90~132
VAC180~264		 24V, 36V, 48V - EN60950-1 215x115x50
250W ESP-250B-xx 24V, 36V, 48V - 215x115x50
350W ESP-350B-xx 5V ,12V, 24V, 36V, 48V - 215x115x50
210W ESP-210C-xx VAC90~132
VAC180~264
VDC250~370 		5V ,7.5V,12V,15V 24V, 36V, 48V - 215x115x50
250W ESP-250C-xx 5V ,7.5V,12V,15V 24V, 36V, 48V - 215x115x50
350W ESP-350C-xx 5V ,7.5V,12V,15V 24V, 36V, 48V - 215x115x50

AC-DC Power Supplies

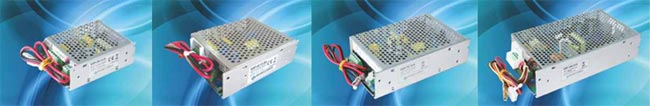

Charging Series (Single Output)

Series Output
Power		 Model Name Input Range
(VAC)		 Output
Voltage 		Output
Current		 Features Size
(mm)
ESP-A 20W ESP-20-13.8A VAC90~264 13.8V 1.5A Protection for battery
over discharge 		105x78x37
42W ESP-42-13.8A 13.8V 3A 129x98x40
42W ESP-42-27.6A 27.6V 1.5A 129x98x40
70W ESP-70-13.8A 13.8V 5A 159x98x42
ESP 20W ESP-20-13.8 VAC195~253 13.8V 1.5A Battery Reveres
charge protection		 129x98x40
42W ESP-42-13.8 13.8V 3A 129x98x40
42W ESP-42-27.6 27.6V 1.5A 129x98x40
70W ESP-70-13.8 13.8V 5A 159x98x42
70W ESP-70-27.6 27.6V 2.5A 159x98x42
140W ESP-140-13.8 13.8V 10A 200x110x50
140W ESP-140-27.6 27.6V 5A 200x110x50

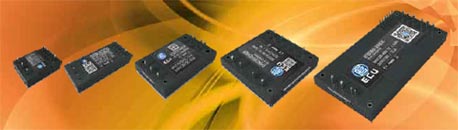

DC-DC Converter
On Board Type (Single Output)

Products
Size		 Series Model Name Power Input Range
(VAC)		 Output Voltage
(VDC)		 Output
Current 		Operating
Temperature

Size
(mm)

1/1
Brick		 EOBS
 EOBS030-028S3V3 30W 16~50Vdc 3.3V 9.1A -40℃~85℃ 24.5x24.5x10.2
EOBS030-028S05 5V 6A
EOBS030-028S08 8V 4A
EOBS030-028S12 12V 2.5A
1/16
Brick		 EVBS EVBS050-048S3V3 50W 18~75Vdc 3.3V 15A -40℃~85℃ 36.5x26.3x12.7
EVBS050-048S05 5V 10A
EVBS050-048S06 6V 8.3A
EVBS050-048S08 8V 6A
EVBS050-048S12 12V 4.2A
EVBS050-048S15 15V 3.3A
EVBS050-048S24 24V 2.1A
EVBS050-048S28 28V 1.8A
1/8
Brick		 EEBS EEBS100-024S24 100W 9~36Vdc 24V 4.2A -40℃~85℃ 60.6x25.4x12.7
EEBS100-024S28 28V 3.6A
EEBS120-048S3V3 120W 18~75Vdc 3.3V 36A
EEBS120-048S05 5V 24A
EEBS120-048S08 8V 14A
EEBS120-048S12 12V 10A
1/4
Brick		 EQBS EQBS150-028S05 150W 18~36Vdc 5Vdc 36A -40℃~85℃ 58x37x12.7
EQBS150-028S08 8Vdc 18.8A
EQBS150-028S12 12Vdc 12.5A
EQBS150-028S50 50Vdc 3A
EQBS150-048S05 18~75Vdc 5Vdc 30A
EQBS150-048S08 8Vdc 18.75A
EQBS150-048S12 12Vdc 12.5A
1/4
Brick		 EQBS EQBS360-028S05 360W 16~40Vdc 5V 60A -40℃~85℃ 60.5x38.3x13
EQBS360-028S08 8V 45A
EQBS360-028S12 12V 30A
EQBS360-028S28 28V 13A
EQBS360-056S05 36~75Vdc 5V 60A
EQBS360-160S05 110~220Vdc 5V 60A
EQBS160-500S28 160W 400~650Vdc 28V 5.7A
EQBS160-500S32 32V 5A
1/2
Brick		 EHBS EHBS200-048S24 200W 20~60Vdc 24V 8.3A -40℃~85℃ 63.1x60.6x12.7
EHBS400-280S28 400W 200~350Vdc 28V 14.5A
EHBS500-028S12 500W 16~40Vdc 12V 42A
EHBS500-028S24 12V 20.8A
EHBS500-028S28 28V 18A
EHBS500-048S28 36~75Vdc 28V 18A
Full
Brick		 EFBS
800W		 EFBS800-300S12 800W 200~400V 12V 67A -40℃~85℃ 117.8x62x25
EFBS800-300S28 28V 29A
EFBS800-300S32 32V 25A
EFBS800-300S36 36V 22A
EFBS800-300S48 48V 17A
Full
Brick		 EFBS
1000W		 EFBS1000-080S24 1000W 60~90Vdc 24V 42A -40℃~85℃ 117.8x62x25
EFBS1000-270S14 200~400Vdc 14V 5.32A
EFBS1000-300S28 28V 36A
EFBS1000-300S36 36V 28A
EFBS1000-300S48 48V 21A
EFBS1000-500S28 400~650Vdc 28V 36A
EFBS1000-500S36 36V 28A
EFBS1000-500S48 48V 21A
Full
Brick		 EFBS
1200W		 EFBS1200-300S28 1200W 200~400Vdc 28V 43A -40℃~85℃ 117.8x62x25
EFBS1200-300S36 36V 33.3A
EFBS1200-300S48 48V 25A
EFBS1200-500S28 400~650Vdc 28V 43A
EFBS1200-500S36 36V 33.3A
EFBS1200-500S48 48V 25A
Full
Brick		 EFBS
1500W		 EFBS1500-300S28 1500W 200~400V 28V 54A -40℃~85℃ 117.8x62x25
EFBS1500-300S36 36V 41.7A
EFBS1500-300S48 48V 31A
EFBS1500-500S28 400~650Vdc 28V 31A
EFBS1500-500S36 36V 41.7A
EFBS1500-500S248 48V 53.6A
EFBS1500-160S100 200~400V 48V 31A
