P-DUKE DC-DC Converter


ASR series
ASR01
DC-DC
| Single |
Output Power : 5W~15W
Output Current : 1A
Input(VDC) : -18~32V
Output(VDC) : -5V -5.2V -6V -8V -9V -12V -15V
Operating Temperture : -40℃~+85℃
[Download]
 ASR01 Datasheet
 ASR01 Characteristic Curves

LSR series

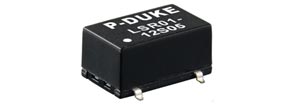

LSR01
DC-DC
| Single |
Output Power : 5W~15W
Output Current : 1A
Input(VDC) : 3.0~36V
Output(VDC) : 1.2V 1.5V 1.8V 2.5V 3.3V
                       5V 6.5V 9V 12V 15V

Operating Temperture : -40℃~+105℃
[Download]
 LSR01 Datasheet
 LSR01 Characteristic Curves

NSR series
NSR01
DC-DC
| Single |
Output Power : 1W~15W
Output Current : 1A
Input(VDC) : 4.6~36V
Output(VDC) : 1.2V 1.5V 1.8V 2.5V 3.3V
                        5V 6.5V 9V 12V 15V

Operating Temperture : -40℃~+100℃
[Download]
 NSR01 Datasheet
 NSR01 Characteristic Curves

OSR series

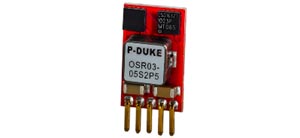

OSR03
DC-DC
| Single |
Output Power : 1W~15W
Output Current : 3A
Input(VDC) : Positive 2.5 ~ 30V
                   Negative 4.7 ~25V

OutPut(VDC) : Positive 2.5V 3.3V 5V 12V
                      Negative 3.3V 5V 12V

Operating Temperture : -40℃ ~ +100℃
[Download]
 OSR03 Datasheet
 OSR03 Characteristic Curves
 OSR03 3D Drawing for SolidWorks

PSR series

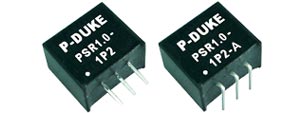

PSR1.0
DC-DC
| Single |
Output Power : 1W~15W
Output Current : 1A
Input(VDC) : 4.6~36V
Output(VDC) : 1.2V 1.5V 1.8V 2.5V 3.3V
                        5V 6.5V 9V 12V 15V

Operating Temperture : -40℃~+100℃
[Download]
 PSR1.0 Datasheet
 PSE1.0 Characteristic Curves
PSR02
DC-DC
| Single |
Output Power : 2W~30W
Output Current : 2A
Input(VDC) : 3.0~36V
Output(VDC) : 1.2V 1.5V 1.8V 2.5V 3.3V
                        5V 6.5V 9V 12V 15V

Operating Temperture : -40℃~+100℃
[Download]
 PSR02 Datasheet
 PSE02 Characteristic Curves

SSR series

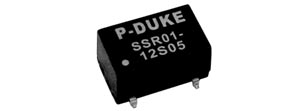

SSR01
DC-DC
| Single |
Output Power : 2W~30W
Output Current : 1A
Input(VDC) : Positive 3.0 ~ 36V
                   Negative 4.6 ~32V

OutPut(VDC) : Positive 2.5V 3.3V 5V 9V 12V 15V
                      Negative 3.3V 5V 9V 12V 15V

Operating Temperture : -40℃ ~ +105℃
[Download]
 SSR01 Datasheet
 SSR01 Characteristic Curves
 SSR01 3D Drawing for SolidWorks

DOS & DOH series

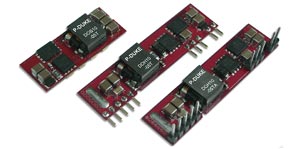

DOS06-05T & DOH06-05T
DC-DC
Output Current : 6A
Input Voltage: 2.4 ~ -5.5VDC
OutPut Voltage: 0.75 ~ 3.3VDC
[Download]
 DOS(H)06-05T Datasheet
 DOS(H) Characteristic Curves
 DOS(H)06 3D Drawing for solidWorks

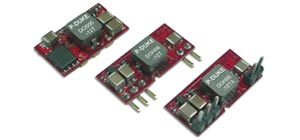

DOS06-12T & DOH06-12T
DC-DC
Output Current : 6A
Input Voltage: 8.3 ~ -14VDC
OutPut Voltage: 0.75 ~ 5VDC
[Download]
 DOS(H)06-12T Datasheet
 DOS(H) Characteristic Curves
 DOS(H)06 3D Drawing for solidWorks
DOS10-05T & DOH10-05T
DC-DC
Output Current : 10A
Input Voltage: 2.4 ~ -5.5VDC
OutPut Voltage: 0.75 ~ 3.3VDC
[Download]
 DOS(H)10-05T Datasheet
 DOS(H) Characteristic Curves
 DOS(H)10 3D Drawing for solidWorks
DOS10-12T & DOH10-12T
DC-DC
Output Current : 10A
Input Voltage: 8.3 ~ -14VDC
OutPut Voltage: 0.75 ~ 5VDC
[Download]
 DOS(H)10-12T Datasheet
 DOS(H) Characteristic Curves
 DOS(H)10 3D Drawing for solidWorks
DOS16-05T & DOH16-05T
DC-DC
Output Current : 16A
Input Voltage: 2.4 ~ -5.5VDC
OutPut Voltage: 0.75 ~ 3.3VDC
[Download]
 DOS(H)16-05T Datasheet
 DOS(H) Characteristic Curves
 DOS(H)16 3D Drawing for solidWorks
DOS16-12T & DOH16-12T
DC-DC
Output Current : 16A
Input Voltage: 8.3 ~ -14VDC
OutPut Voltage: 0.75 ~ 5VDC
[Download]
 DOS(H)16-12T Datasheet
 DOS(H) Characteristic Curves
 DOS(H)16 3D Drawing for solidWorks

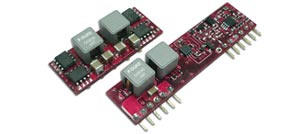

DOS30 & DOH30
DC-DC
Output Current : 30A
Input Voltage: 5V (4.4 ~ -5.5VDC)
                      12V(6 ~ 14VDC)

OutPut Voltage: 0.8 ~ 3.63VDC
                          0.8 ~ 2.75VDC
[Download]
 DOS(H)30 Datasheet
 DOS(H) Characteristic Curves
 DOS(H)30 3D Drawing for solidWorks

DU series

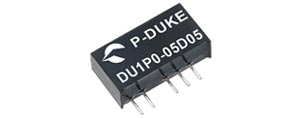

DU1P0
DC-DC
| Single | Dual |
Output Power : 1W
Input(VDC) : 5V 12V 15V 24V
OutPut(VDC) : Single 5V 12V 15V
                         Dual ±5V ±12V ±15V

Operating Temperture : -25℃ ~ +100℃
[Download]
 DU1P0 Datasheet
 DU1P0 Characteristic Curves
 DU1P0 3D Drawing for solidWorks

DUR series

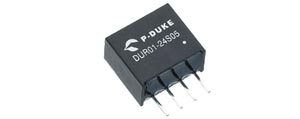

DUR01
DC-DC
| Single |
Output Power : 1W
Input(VDC) : 3.3V 5V 9V 12V 15V 24V
OutPut(VDC) : 3.3V 5V 9V 12V 15V
Operating Temperture : -40℃ ~ +85℃
[Download]
 DUR01 Datasheet
 DUR01 Characteristic Curves
 DUR01 3D Drawing for solidWorks

EDL series
EDL02
DC-DC
| Single | Dual |
1600VDC Isolation Voltage
Output Power : 2W
Input(VDC) : 4.5~13.2V | 9~18V | 18~36V | 36~75V
OutPut(VDC) : Single 3.3V 5V 9V 12V 15V 24V
                        Dual ±5V ±12V ±15V

Operating Temperture : -40℃ ~ +105℃
[Download]
 EDL02 Datasheet
 EDL02 Characteristic Curves
EDL02W
DC-DC
| Single | Dual |
1600VDC Isolation Voltage
Output Power : 2W
Input(VDC) : 4.5~18V | 9~36V | 18~75V
OutPut(VDC) : Single 3.3V 5V 9V 12V 15V 24V
                        Dual ±5V ±12V ±15V

Operating Temperture : -40℃ ~ +105℃
[Download]
 EDL02W Datasheet
 EDL02W Characteristic Curves
EDL03
DC-DC
| Single | Dual |
1600VDC Isolation Voltage
Output Power : 3W
Input(VDC) : 4.5~13.2V | 9~18V | 18~36V | 36~75V
OutPut(VDC) : Single 3.3V 5V 9V 12V 15V 24V
                         Dual ±5V ±12V ±15V

Operating Temperture : -40℃ ~ +105℃
[Download]
 EDL03 Datasheet
 EDL03 Characteristic Curves
EDL03W
DC-DC
| Single | Dual |
1600VDC Isolation Voltage
Output Power : 3W
Input(VDC) : 4.5~18V | 9~36V | 18~75V
OutPut(VDC) : Single 3.3V 5V 9V 12V 15V 24V
                         Dual ±5V ±12V ±15V

Operating Temperture : -40℃ ~ +105℃
[Download]
 EDL03W Datasheet
 EDL03W Characteristic Curves

LDL series

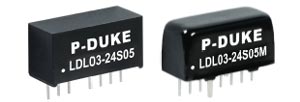

LDL03
DC-DC
| Single | Dual |
1600VDC Isolation Voltage
Ultra Low Ripple & Noise (5mVp-p)
Output Power : 3W
Input(VDC) : 4.5~13.2V | 9~18V | 18~36V | 36~75V |
OutPut(VDC) : Single 3.3V 5V 9V 12V 15V 24V
                         Dual ±5V ±12V ±15V

Operating Temperture : -40℃ ~ +105℃
[Download]
 LDL03 Datasheet
 LDL03 Characteristic Curves

FDC series
FDC05 / FDC05W
DC-DC
| Single | Dual |
1600VDC Isolation Voltage
Output Power : 5W
Input(VDC) : 9~18V | 18~36V | 36~75V
                   W type : 9~36V | 18~75V

OutPut(VDC) : Single 3.3V 5V 12V 15V
                       Dual ±5V ±12V ±15V

Operating Temperture : (M1) -40℃ ~ +105℃
                                   (M2) -40℃ ~ +100℃
[Download]
 FDC05(W) Datasheet
 FDC05(W) CE
 FDC05(W) 3D Drawing for SolidWorks
FDC10 / FDC10W
DC-DC
| Single | Dual |
1600VDC Isolation Voltage
Output Power : 10W
Input(VDC) : 9~18V | 18~36V | 36~75V
                   W type : 9~36V | 18~75V

OutPut(VDC) : Single 3.3V 5V 12V 15V
                        Dual ±5V ±12V ±15V

Operating Temperture : (Std) -25℃ ~ +85℃
      Without Dearting→ (M1) -40℃ ~ +85℃
                                   (M2) -40℃ ~ +85℃
                                   (M3) -55℃ ~ +85℃
[Download]
 FDC10(W) Datasheet
 FDC10(W) CE
 FDC10 Characteristic Curves
 FDC10W Characteristic Curves
 FDC10(W) 3D Drawing for SolidWorks
FDC15
DC-DC
| Single | Dual |
1600VDC Isolation Voltage
Output Power : 15W
Input(VDC) : 9~36V | 18~75V
OutPut(VDC) : Single 5V 12V 15V
                        Dual ±5V ±12V ±15V

Operating Temperture : -40℃ ~ +85℃
[Download]
 FDC15 Datasheet
 FDC15 CE
 FDC15 3D Drawing for SolidWorks
FDC20 / FDC20W
DC-DC
| Single | Dual | Triple |
1600VDC Isolation Voltage
Output Power : 20W
Input(VDC) : 9~18V | 18~36V | 36~75V
                  W type : 9~36V | 18~75V

OutPut(VDC) : Single 3.3V 5V 12V 15V
                        Dual ±5V ±12V ±15V
                       Triple 3.3V +12V -12V
                                3.3V +15V -15V
                                  5V +12V -12V
                                  5V +15V -15V

Operating Temperture : -40℃ ~ +85℃
[Download]
 FDC20(W) Datasheet
 FDC20(W) CE
 FDC20(W) 3D Drawing for SolidWorks

FEC series
FEC15
| Single | Dual |
1600VDC Isolation Voltage
Output Power : 15W
Input(VDC) : 9~18V | 18~36V | 36~75V
OutPut(VDC) : Single 3.3V 5V 12V 15V
                         Dual ±5V ±12V ±15V
Operating Temperture : (Std) -40℃ ~ +100℃
                                   (M3) -55℃ ~ +100℃
[Download]
 FEC15 Datasheet
 FEC15 CE
 FEC15 3D Drawing for SolidWorks
FEC15W
DC-DC
| Single | Dual |
1600VDC Isolation Voltage
Output Power : 15W
Input(VDC) : 9~36V | 18~75V
OutPut(VDC) : Single 3.3V 5V 5.1V 12V 15V
                        Dual ±5V ±12V ±15V

Operating Temperture : (Std) -40℃ ~ +100℃
                                   (M3) -55℃ ~ +100℃
[Download]
 FEC15W Datasheet
 FEC15W CE
 FEC15W Characteristic Curves
 FEC15(W) 3D Drawing for SolidWorks
FEC30
DC-DC
| Single | Dual |
1600VDC Isolation Voltage
Output Power : 30W
Input(VDC) : 9~18V | 18~36V | 36~75V
OutPut(VDC) :
                Single 1.5V 1.8V 2.5V 3.3V 5V 12V 15V
                   Dual ±12V ±15V

Operating Temperture : -40℃ ~ +100℃
[Download]
 FEC30 Datasheet
 FEC30 CE
 FEC30 Characteristic Curves
 FEC30 3D Drawing for SolidWorks
FEC30W
DC-DC
| Single | Dual |
1600VDC Isolation Voltage
Output Power : 30W
Input(VDC) : 10~40V | 18~75V
OutPut(VDC) :
             Single 1.5V 1.8V 2.5V 3.3V 5V 12V 15V
                Dual ±12V ±15V

Operating Temperture : -40℃ ~ +100℃
[Download]
 FEC30W Datasheet
 FEC30W CE
 FEC30W Characteristic Curves
 FEC30(W) 3D Drawing for SolidWorks
FEC40
DC-DC
| Single | Dual | Triple |
1600VDC Isolation Voltage
Output Power : 40W
Input(VDC) : 9~18V | 18~36V | 36~75V
OutPut(VDC) :
                Single 1.5V 1.8V 2.5V 3.3V 5V 12V 15V
                  Dual ±12V ±15V 3.3V/5V
                 Triple 3.3V +12V -12V
                            3.3V +15V -15V
                             5V +12V -12V
                             5V +15V -15V

Operating Temperture : -40℃ ~ +100℃
[Download]
 FEC40 Datasheet
 FEC40 CE
 FEC40W Characteristic Curves
 FEC40 3D Drawing for SolidWorks
FEC40W
DC-DC
| Single | Dual |
1600VDC Isolation Voltage
Output Power : 40W
Input(VDC) : 9~36V | 18~75V
OutPut(VDC) : Single 3.3V 5V 12V 15V
                         Dual ±12V ±15V

Operating Temperture : -40℃ ~ +115℃
[Download]
 FEC40W Datasheet
 FEC40W CE
 FEC40W Characteristic Curves
 FEC40(W) 3D Drawing for SolidWorks

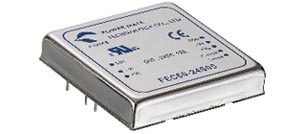

FEC60
DC-DC
| Single |
1600VDC Isolation Voltage
Output Power : 60W
Input(VDC) : 18~36V | 36~75V
OutPut(VDC) : Single 3.3V 5V 12V 15V 24V
Operating Temperture : -40℃ ~ +105℃
[Download]
 FEC60 Datasheet
 FEC60 CE
 FEC60 Characteristic Curves
 FEC60 3D Drawing for SolidWorks

FED series
FED20
DC-DC
| Single | Dual |
1600VDC Isolation Voltage
Output Power : 20W
Input(VDC) : 9~18V | 18~36V | 36~75V
OutPut(VDC) :
             Single 1.5V 1.8V 2.5V 3.3V 5V 12V 15V
               Dual ±12V ±15V

Operating Temperture : (Std) -40℃ ~ +100℃
                                       (M3) -55℃ ~ +100℃
[Download]
 FED20 Datasheet
 FED20 CE
 FED20 Characteristic Curves
 FED20 3D Drawing for SolidWorks
FED20W
DC-DC
| Single | Dual |
1600VDC Isolation Voltage
Output Power : 20W
Input(VDC) : 9~36V | 18~75V
OutPut(VDC) : Single 3.3V 5V 12V 15V
                         Dual ±5V ±12V ±15V

Operating Temperture : (Std) -40℃ ~ +100℃
                                       (M3) -55℃ ~ +100℃
[Download]
 FED20W Datasheet
 FED20W CE
 FED20W Characteristic Curves
 FED20W 3D Drawing for SolidWorks
FED30
DC-DC
| Single | Dual |
1600VDC Isolation Voltage
Output Power : 30W
Input(VDC) : 9~18V | 18~36V | 36~75V
OutPut(VDC) :
              Single 1.5V 2.5V 3.3V 5V 5.1V 12V 15V
                 Dual ±5V ±12V ±15V

Operating Temperture : -40℃ ~ +85℃
[Download]
 FED30 Datasheet
 FED30 CE
 FED30 Characteristic Curves
 FED30 3D Drawing for SolidWorks
FED30W
DC-DC
| Single | Dual | Triple |
1600VDC Isolation Voltage
Output Power : 30W
Input(VDC) : 9~36V | 18~75V
OutPut(VDC) :
              Single 1.5V 2.5V 3.3V 5V 5.1V 12V 15V
                Dual ±5V ±12V ±15V

Operating Temperture : (Std) -40℃ ~ +100℃
                                       (M3) -55℃ ~ +100℃
[Download]
 FED30W Datasheet
 FED30TW Datasheet
 FED30W CE
 FED30W Characteristic Curves
 FED30(W) 3D Drawing for SolidWorks
FED40
DC-DC
| Single | Dual |
1600VDC Isolation Voltage
Output Power : 40W
Input(VDC) : 9~18V | 18~36V | 36~75V
OutPut(VDC) : ingle 3.3V 5V 12V 15V 24V
                        Dual ±12V ±15V ±24V

Operating Temperture : -40℃ ~ +105℃
                                      -55℃ ~ +105℃
[Download]
 FED40 Datasheet
 FED40 CE
 FED40 Characteristic Curves
 FED40 3D Drawing for SolidWorks
FED40W
DC-DC / Railway
| Single | Dual |
1600VDC & 3000VDC Isolation Voltage
Output Power : 40W
Input(VDC) : 9~36V | 18~75V | 43~160V
OutPut(VDC) : Single 3.3V 5V 12V 15V 24V
                         Dual ±12V ±15V ±24V

Operating Temperture : -40℃ ~ +105℃
                                      -55℃ ~ +105℃
[Download]
 FED40W Datasheet
 FED40W CE
 FED40W Characteristic Curves
 FED40W 3D Drawing for SolidWorks
FED60
DC-DC
| Single | Dual |
1600VDC Isolation Voltage
Output Power : 60W
Input(VDC) : 9~18V | 18~36V | 36~75V
OutPut(VDC) : Single 3.3V 5V 12V 15V 24V
                         Dual ±12V ±15V ±24V

Operating Temperture : (Std) -40℃ ~ +105℃
                                       (M3) -55℃ ~ +105℃
[Download]
 FED60 Datasheet
 FED60 CE
 FED60 Characteristic Curves
 FED60(W) 3D Drawing for SolidWorks
FED60W
DC-DC
| Single | Dual |
1600VDC Isolation Voltage
Output Power : 60W
Input(VDC) : 9~36V | 18~75V
OutPut(VDC) : Single 3.3V 5V 12V 15V 24V
                         Dual ±12V ±15V ±24V

Operating Temperture : (Std) -40℃ ~ +105℃
                                       (M3) -55℃ ~ +105℃
[Download]
 FED60W Datasheet
 FED60W CE
 FED60W Characteristic Curves
 FED60(W) 3D Drawing for SolidWorks

FKC series
FKC03
DC-DC
| Single | Dual |
1600VDC Isolation Voltage
Output Power : 3W
Input(VDC) : 9~18V | 18~36V | 36~75V
OutPut(VDC) : Single 3.3V 5V 12V 15V
                         Dual ±5V ±12V ±15V

Operating Temperture : (Std) -25℃ ~ +100℃
                                       (M1) -40℃ ~ +105℃
                                       (M2) -40℃ ~ +100℃
[Download]
 FKC03 Datasheet
 FKC03 CE
 FKC03 3D Drawing for SolidWorks
FKC05 / FKC05W
DC-DC
| Single | Dual |
1600VDC Isolation Voltage
Output Power : 5W
Input(VDC) : 9~18V | 18~36V | 36~75V
                   W Type  9~36V | 18~75V

OutPut(VDC) : Single 3.3V 5V 12V 15V
                        Dual ±5V ±12V ±15V

Operating Temperture : (Std) -25℃ ~ +100℃
                                       (M1) -40℃ ~ +105℃
                                       (M2) -40℃ ~ +100℃
[Download]
 FKC05(W) Datasheet
 FKC05(W) CE
 FKC05(W) 3D Drawing for SolidWorks
FKC08
DC-DC
| Single | Dual |
1600VDC Isolation Voltage
Output Power : 8W
Input(VDC) : 9~18V | 18~36V | 36~75V
OutPut(VDC) : Single 3.3V 5V 12V 15V
                         Dual ±5V ±12V ±15V

Operating Temperture : (Std) -40℃ ~ +100℃
                                       (M3) -55℃ ~ +100℃
[Download]
 FKC08 Datasheet
 FKC08 CE
 FKC08 Characteristic Curves
 FKC08 3D Drawing for SolidWorks
FKC08W
DC-DC / Railway
| Single | Dual |
1600VDC & 3000VDC Isolation Voltage
Output Power : 8W
Input(VDC) : 9~36V | 18~75V | 43~160V
OutPut(VDC) : Single 3.3V 5V 12V 15V
                         Dual ±5V ±12V ±15V

Operating Temperture : (Std) -40℃ ~ +105℃
                                       (M3) -55℃ ~ +105℃
[Download]
 FKC08W Datasheet
 FKC08W CE
 FKC08W Characteristic Curves
 FKC08(W) 3D Drawing for SolidWorks
FKC12
DC-DC
| Single | Dual |
1600VDC Isolation Voltage
Output Power : 12W
Input(VDC) : 9~18V | 18~36V | 36~75V
OutPut(VDC) : Single 2.5V 3.3V 5.1V 12V 15V
                         Dual ±5V ±12V ±15V

Operating Temperture : -40℃ ~ +61℃
[Download]
 FKC12 Datasheet
 FKC12 CE
 FKC12 Characteristic Curves
 FKC12 3D Drawing for SolidWorks
FKC12W
DC-DC
| Single | Dual |
1600VDC Isolation Voltage
Output Power : 12W
Input(VDC) : 9~36V | 18~75V
OutPut(VDC) : Single 3.3V 5.1V 12V 15V
                          Dual ±5V ±12V ±15V

Operating Temperture : -40℃ ~ +61℃
[Download]
 FKC12W Datasheet
 FKC12W CE
 FKC12W Characteristic Curves
 FKC12W 3D Drawing for SolidWorks
FKC15
DC-DC
| Single | Dual |
1600VDC Isolation Voltage
Output Power : 15W
Input(VDC) : 9~18V | 18~36V | 36~75V
OutPut(VDC) : Single 3.3V 5.1V 12V 15V
                         Dual ±5V ±12V ±15V

Operating Temperture : -40℃ ~ +105℃
[Download]
 FKC15 Datasheet
 FKC15 CE
 FKC15 Characteristic Curves
FKC15W
DC-DC
| Single | Dual |
1600VDC Isolation Voltage
Output Power : 15W
Input(VDC) : 9~36V | 18~75V
OutPut(VDC) : Single 3.3V 5.1V 12V 15V
                         Dual ±5V ±12V ±15V

Operating Temperture : -40℃ ~ +105℃
[Download]
 FKC15W Datasheet
 FKC15W CE
 FKC15W Characteristic Curves

MKC series
MKC03
DC-DC
| Single | Dual |
500VDC Isolation Voltage
Ultra Low Ripple & Noise (5~10mVp-p)
Output Power : 3W
Input(VDC) : 9~18V | 18~36V | 36~75V
OutPut(VDC) : Single 3.3V 5V 12V 15V
                         Dual ±5V ±12V ±15V

Operating Temperture : (Std)-25℃ ~ +85℃
                                       (M1)-40℃ ~ +85℃
[Download]
 MKC03 Datasheet
 MKC03 CE
 MKC03 Characteristic Curves
 MKC03 3D Drawing for SolidWorks

LKC series
LKC05W
DC-DC
| Single | Dual |
1600VDC Isolation Voltage
Ultra Low Ripple & Noise (5~10mVp-p)
Output Power : 5W
Input(VDC) : 4.5~12V | 9~36V | 18~75V
OutPut(VDC) : Single 3.3V 5V 12V 15V 24V
                         Dual ±5V ±12V ±15V ±24V

Operating Temperture : -40℃ ~ +100℃
[Download]
 LKC05W Datasheet
 LKC05W CE
 LKC05W Characteristic Curves

LCD series
LCD10
DC-DC
| Single | Dual |
1600VDC Isolation Voltage
Output Power : 10W
Input(VDC) : 9~18V | 18~36V | 36~75V
OutPut(VDC) : Single 3.3V 5V 12V 15V 24V
                         Dual ±5V ±12V ±15V

Operating Temperture : -40℃ ~ +105℃
[Download]
 LCD10 Datasheet
 LCD10 CE
 LCD10 Characteristic Curves
 LCD10(W) 3D Drawing for SolidWorks
LCD10W
DC-DC
Single | Dual |
1600VDC Isolation Voltage
Output Power : 10W
Input(VDC) : 9~36V | 18~75V
OutPut(VDC) : Single 3.3V 5V 12V 15V 24V
                         Dual ±5V ±12V ±15V

Operating Temperture : -40℃ ~ +105℃
[Download]
 LCD10W Datasheet
 LCD10W CE
 LCD10W Characteristic Curves
 LCD10(W) 3D Drawing for SolidWorks
LCD15
DC-DC
| Single | Dual |
1600VDC Isolation Voltage
Output Power : 15W
Input(VDC) : 9~18V | 18~36V | 36~75V
OutPut(VDC) : Single 3.3V 5V 12V 15V 24V
                        Dual ±5V ±12V ±15V ±24V

Operating Temperture : -40℃ ~ +105℃
[Download]
 LCD15 Datasheet
 LCD15 CE
 LCD15 Characteristic Curves
 LCD15(W) 3D Drawing for SolidWorks
LCD15W
DC-DC
| Single | Dual |
1600VDC Isolation Voltage
Output Power : 15W
Input(VDC) : 9~36V | 18~75V
OutPut(VDC) : Single 3.3V 5V 12V 15V 24V
                         Dual ±5V ±12V ±15V ±24V

Operating Temperture : -40℃ ~ +105℃
[Download]
 LCD15W Datasheet
 LCD15W CE
 LCD15W Characteristic Curves
 LCD15(W) 3D Drawing for SolidWorks
LCD20
DC-DC
| Single | Dual |
1600VDC Isolation Voltage
Output Power : 20W
Input(VDC) : 9~18V | 18~36V | 36~75V
OutPut(VDC) : Single 3.3V 5V 12V 15V 24V
                          Dual ±12V ±15V ±24V

Operating Temperture : (Std) -40℃ ~ +101℃
                                       (M3) -55℃ ~ +101℃
[Download]
 LCD20 Datasheet
 LCD20 CE
 LCD20 Characteristic Curves
 LCD20(W) 3D Drawing for SolidWorks
LCD20W
DC-DC
| Single | Dual |
1600VDC Isolation Voltage
Output Power : 20W
Input(VDC) : 9~36V | 18~75V
OutPut(VDC) : Single 3.3V 5V 12V 15V 24V
                         Dual ±12V ±15V ±24V

Operating Temperture : (Std) -40℃ ~ +101℃
                                       (M3) -55℃ ~ +101℃
[Download]
 LCD20W Datasheet
 LCD20W CE
 LCD20W Characteristic Curves
 LCD20(W) 3D Drawing for SolidWorks
LCD30
DC-DC
| Single | Dual |
1600VDC Isolation Voltage
Output Power : 30W
Input(VDC) : 9~18V | 18~36V | 36~75V
OutPut(VDC) : Single 3.3V 5V 12V 15V 24V
                         Dual ±12V ±15V ±24V

Operating Temperture : -40℃ ~ +100℃
[Download]
 LCD30 Datasheet
 LCD30 CE
 LCD30 Characteristic Curves
 LCD30(W) 3D Drawing for SolidWorks
LCD30W
DC-DC
| Single | Dual |
1600VDC Isolation Voltage
Output Power : 30W
Input(VDC) : 9~36V | 18~75V
OutPut(VDC) : Single 3.3V 5V 12V 15V 24V
                         Dual ±12V ±15V ±24V

Operating Temperture : (Std) -40℃ ~ +101℃
                                       (M3) -55℃ ~ +101℃
[Download]
 LCD30W Datasheet
 LCD30W CE
 LCD30W Characteristic Curves
 LCD30(W) 3D Drawing for SolidWorks

RCD series
RCD15
DC-DC
| Single | Dual |
1600VDC & 3000VDC Isolation Voltage
Output Power : 15W
Input(VDC) : 9~18V | 18~36V | 36~75V
OutPut(VDC) : Single 3.3V 5V 12V 15V 24V
                         Dual ±5V ±12V ±15V ±24V

Operating Temperture : (Std) -40℃ ~ +105℃
                                       (M3) -55℃ ~ +105℃
[Download]
 RCD15 Datasheet
 RCD15 Characteristic Curves
 RCD15(W)-v01.STEP
 RCD15(W)-HC-V001.STEP
RCD15W
DC-DC / Railway
| Single | Dual |
1600VDC & 3000VDC Isolation Voltage
Output Power : 15W
Input(VDC) : 9~18V | 18~36V | 36~75V
OutPut(VDC) : Single 3.3V 5V 12V 15V 24V
                         Dual ±5V ±12V ±15V ±24V

Operating Temperture : (Std) -40℃ ~ +105℃
                                       (M3) -55℃ ~ +105℃
[Download]
 RCD15W Datasheet
 RCD15W Characteristic Curves
 RCD15(W) 3D Drawing for SolidWorks

LED series
LED15
DC-DC
| Single |
2250VDC Isolation Voltage
Output Power : 15W
Input(VDC) : 18~36V | 36~75V
OutPut(VDC) : Single 3.3V 5V 12V 15V
Operating Temperture : -40℃ ~ +105℃
[Download]
 LLD15 Datasheet
 LED15 CE
 LED15 Characteristic Curves
 LED15(W) 3D Drawing for SolidWorks
LED15W
DC-DC
| Single |
2250VDC Isolation Voltage
Output Power : 15W
Input(VDC) : 9~36V | 18~75V
OutPut(VDC) : Single 3.3V 5V 12V 15V
Operating Temperture : -40℃ ~ +120℃
[Download]
 LED15W Datasheet
 LED15W CE
 LED15W Characteristic Curves
 LED15(W) 3D Drawing for SolidWorks

MPD series
MPD30 / MPD30W
DC-DC / Medical
| Single | Dual |
5000VAC Isolation Voltage
Output Power : 30W
Input(VDC) : 9~18V | 18~36V | 36~75V |
OutPut(VDC) : Single 5V 12V 15V 24V
                          Dual ±5V ±12V ±15V

Operating Temperture : -40℃ ~ +105℃
[Download]
 MPD30(W) Datasheet
 MPD30(W) Characteristic Curves

MPS/MPH series
MPS02 / MPH02
DC-DC / Medical
| Single | Dual |
5000VAC Isolation Voltage
Output Power : 2W
Input(VDC) : 5V 12V 24V 48V
OutPut(VDC) : Single 3.3V 5V 12V 15V 24V
                          Dual ±12V ±15V

Operating Temperture : -40℃ ~ +105℃
[Download]
 MPS02(H) Datasheet
 MPS02(H) Characteristic Curves
MPS04 / MPH04
DC-DC / Medical
| Single | Dual |
5000VAC Isolation Voltage
Output Power : 4W
Input(VDC) : 5V 12V 24V 48V
OutPut(VDC) : Single 5V 9V 12V 15V 24V
                        Dual ±12V ±15V

Operating Temperture : -40℃ ~ +105℃
[Download]
 MPS04(H) Datasheet

MPM series
MPM15 / MPM15W
DC-DC / Medical
| Single | Dual |
5000VAC Isolation Voltage
Output Power : 15W
Input(VDC) : 12V 24V 48V
                    W type 24V 48V

OutPut(VDC) : Single 5V 12V 15V 24V
                        Dual ±5V ±12V ±15V

Operating Temperture : -40℃ ~ +105℃
[Download]
 MPM15(W) Datasheet
 MPM15(W) Characteristic Curves
MPM20 / MPM20W
DC-DC / Medical
| Single | Dual |
5000VAC Isolation Voltage
Output Power : 20W
Input(VDC) : 12V 24V 48V
                    W type 24V 48V

OutPut(VDC) : Single 5V 12V 15V 24V
                         Dual ±5V ±12V ±15V

Operating Temperture : -40℃ ~ +105℃
[Download]
 MPM20(W) Datasheet
 MPM20(W) Characteristic Curves

MOP series
MOP03 / MOP03W
DC-DC / Medical
| Single | Dual |
3000VAC Isolation Voltage
Output Power : 3W
Input(VDC) : 5V 12V 24V 48V
                    W type 24V 48V

OutPut(VDC) : Single 3.3V 5V 12V 15V 24V
                         Dual ±5V ±12V ±15V

Operating Temperture : -40℃ ~ +94℃
[Download]
 MOP03(W) Datasheet
 MOP03(W) CE
 MOP03 Characteristic Curves
 MOP03W Characteristic Curves
 MOP03(W) 3D Drawing for SolidWorks
MOP06 / MOP06W
DC-DC / Medical
| Single | Dual |
3000VAC Isolation Voltage
Output Power : 6W
Input(VDC) : 5V 12V 24V 48V
                   W type 24V 48V

OutPut(VDC) : Single 3.3V 5V 12V 15V 24V
                        Dual ±5V ±12V ±15V

Operating Temperture : -40℃ ~ +88℃
[Download]
 MOP06(W) Datasheet
 MOP06(W) CE
 MOP06 Characteristic Curves
 MOP06W Characteristic Curves
 MOP06(W) 3D Drawing for SolidWorks
MOP10 / MOP10W
DC-DC / Medical
| Single | Dual |
3000VAC Isolation Voltage
Output Power : 10W
Input(VDC) : 5V 12V 24V 48V
                    W type 24V 48V

OutPut(VDC) : Single 3.3V 5V 12V 15V 24V
                         Dual ±5V ±12V ±15V

Operating Temperture : -40℃ ~ +77℃
[Download]
 MOP10(W) Datasheet
 MOP10(W) CE
 MOP10 Characteristic Curves
 MOP10W Characteristic Curves
 MOP10(W) 3D Drawing for SolidWorks

MPP series
MPP03 / MPP03W
DC-DC / Medical
| Single | Dual |
5000VAC Isolation Voltage
Output Power : 3W
Input(VDC) : 5V 12V 24V 48V
                    W type 24V 48V

OutPut(VDC) : Single 3.3V 5V 12V 15V 24V
                          Dual ±5V ±12V ±15V

Operating Temperture : -40℃ ~ +94℃
[Download]
 MPP03(W) Datasheet
 MPP03(W) CE
 MPP03 Characteristic Curves
 MPP03W Characteristic Curves
 MPP03(W) 3D Drawing for SolidWorks
MPP06 / MPP06W
DC-DC / Medical
| Single | Dual |
5000VAC Isolation Voltage
Output Power : 6W
Input(VDC) : 5V 12V 24V 48V
                    W type 24V 48V

OutPut(VDC) : Single 3.3V 5V 12V 15V 24V
                        Dual ±5V ±12V ±15V

Operating Temperture : -40℃ ~ +88℃
[Download]
 MPP06(W) Datasheet
 MPP06(W) CE
 MPP06 Characteristic Curves
 MPP06W Characteristic Curves
 MPP06(W) 3D Drawing for SolidWorks
MPP10 / MPP10W
DC-DC / Medical
| Single | Dual |
5000VAC Isolation Voltage
Output Power : 10W
Input(VDC) : 5V 12V 24V 48V
                   W type 24V 48V

OutPut(VDC) : Single 3.3V 5V 12V 15V 24V
                       Dual ±5V ±12V ±15V

Operating Temperture : -40℃ ~ +77℃
[Download]
 MPP10(W) Datasheet
 MPP10(W) CE
 MPP10 Characteristic Curves
 MPP10W Characteristic Curves
 MPP10(W) 3D Drawing for SolidWorks

PDS series
PDS02 / PDH02
DC-DC
| Single | Dual |
3000VDC & 1600VDC Isolation Voltage
Output Power : 2W
Input(VDC) : 5V 12V 24V 48V
OutPut(VDC) : Single 3.3V 5V 12V 15V 24V
                          Dual ±5V ±12V ±15V

Operating Temperture : -40℃ ~ +85℃
[Download]
 PDS(H)02 Datasheet
 PDS(H)02 CE
 PDS(H)02 Characteristic Curves
 PDS(H)02 3D Drawing for SolidWorks
PDS02W / PDH02W
DC-DC
| Single | Dual |
3000VDC & 1600VDC Isolation Voltage
Output Power : 2W
Input(VDC) : 12V 24V 48V
OutPut(VDC) : Single 3.3V 5V 9V 12V 15V
                          Dual ±5V ±12V ±15V

Operating Temperture : -40℃ ~ +71℃
[Download]
 PDS(H)02W Datasheet
 PDS(H)02W CE
 PDS(H)02W Characteristic Curves
 PDS(H)02W 3D Drawing for SolidWorks
PDS03 / PDH03
DC-DC
| Single | Dual |
3000VDC & 1600VDC Isolation Voltage
Output Power : 3W
Input(VDC) : 5V 12V 24V 48V
OutPut(VDC) : Single 3.3V 5V 12V 15V 24V
                          Dual ±5V ±12V ±15V

Operating Temperture : -40℃ ~ +71℃
[Download]
 PDS(H)03 Datasheet
 PDS(H)03 CE
 PDS(H)03 Characteristic Curves
 PDS(H)03 3D Drawing for SolidWorks
PDS03W / PDH03W
DC-DC
| Single | Dual |
3000VDC & 1600VDC Isolation Voltage
Output Power : 3W
Input(VDC) : 12V 24V 48V
OutPut(VDC) : Single 3.3V 5V 9V 12V 15V
                          Dual ±5V ±12V ±15V

Operating Temperture : -40℃ ~ +71℃
[Download]
 PDS(H)03W Datasheet
 PDS(H)03W CE
 PDS(H)03W Characteristic Curves
 PDS(H)03W 3D Drawing for SolidWorks

PDL series
PDL02
DC-DC
| Single | Dual |
3000VDC & 1600VDC Isolation Voltage
Output Power : 2W
Input(VDC) : 5V 12V 24V 48V
OutPut(VDC) : Single 3.3V 5V 9V 12V 15V
                          Dual ±5V ±12V ±15V

Operating Temperture : -40℃ ~ +100℃
[Download]
 PDL02 Datasheet
 PDL02 CE
 PDL02 Characteristic Curves
 PDL02 3D Drawing
PDL03
DC-DC
| Single | Dual |
3000VDC & 1600VDC Isolation Voltage
Output Power : 3W
Input(VDC) : 5V 12V 24V 48V
OutPut(VDC) : Single 3.3V 5V 9V 12V 15V
                         Dual ±5V ±12V ±15V

Operating Temperture : -40℃ ~ +100℃
[Download]
 PDL03 Datasheet
 PDL03 CE
 PDL03 Characteristic Curves
 PDL03(W) 3D Drawing
PDL03W
DC-DC
| Single | Dual |
3000VDC & 1600VDC Isolation Voltage
Output Power : 3W
Input(VDC) : 12V 24V 48V
OutPut(VDC) : Single 3.3V 5V 9V 12V 15V
                         Dual ±5V ±12V ±15V

Operating Temperture : -40℃ ~ +100℃
[Download]
 PDL03W Datasheet
 PDL03W CE
 PDL03W Characteristic Curves
 PDL03(W) 3D Drawing
PDL06
DC-DC
| Single | Dual |
3000VDC & 1600VDC Isolation Voltage
Output Power : 6W
Input(VDC) : 5V 12V 24V 48V
OutPut(VDC) : Single 3.3V 5V 9V 12V 15V 24V
                         Dual ±5V ±12V ±15V

Operating Temperture : -40℃ ~ +90℃
[Download]
 PDL06 Datasheet
 PDL06 CE
 PDL06 Characteristic Curves
 PDL06(W) 3D Drawing for SolidWorks
PDL06W
DC-DC
| Single | Dual |
3000VDC & 1600VDC Isolation Voltage
Output Power : 6W
Input(VDC) : 24V(9~36) 48V(18~75)
OutPut(VDC) : Single 3.3V 5V 9V 12V 15V 24V
                        Dual ±5V ±12V ±15V

Operating Temperture : -40℃ ~ +100℃
[Download]
 PDL06W Datasheet
 PDL06W CE
 PDL06W Characteristic Curves
 PDL06(W) 3D Drawing for SolidWorks
PDL09
DC-DC
| Single | Dual |
1600VDC Isolation Voltage
Output Power : 9W
Input(VDC) : 12V 24V 48V
OutPut(VDC) : Single 3.3V 5V 9V 12V 15V 24V
                         Dual ±5V ±12V ±15V

Operating Temperture : -40℃ ~ +90℃
[Download]
 PDL09 Datasheet
 PDL09 CE
 PDL09 Characteristic Curves
 PDL09(W) 3D Drawing for SolidWorks
PDL09W
DC-DC
| Single | Dual |
1600VDC Isolation Voltage
Output Power : 9W
Input(VDC) : 24V(9~36) 48V(18~75)
OutPut(VDC) : Single 3.3V 5V 9V 12V 15V 24V
                        Dual ±5V ±12V ±15V

Operating Temperture : -40℃ ~ +100℃
[Download]
 PDL09W Datasheet
 PDL09W CE
 PDL09W Characteristic Curves
 PDL09(W) 3D Drawing for SolidWorks

PFKC series
PFKC03
DC-DC
| Single | Dual |
3000VDC & 1600VDC Isolation Voltage
Output Power : 3W
Input(VDC) : 5V 12V 24V 48V
OutPut(VDC) : Single 3.3V 5V 12V 15V
                        Dual ±5V ±12V ±15V

Operating Temperture : -25℃ ~ +71℃
[Download]
 PFKC03 Datasheet
 PFKC03 CE
 PFKC03 Characteristic Curves
 PFKC03 3D Drawing for SolidWorks
PFKC05
DC-DC
| Single | Dual |
3000VDC & 1600VDC Isolation Voltage
Output Power : 5W
Input(VDC) : 12V 24V 48V
OutPut(VDC) : Single 3.3V 5V 12V 15V
                         Dual ±5V ±12V ±15V

Operating Temperture : -25℃ ~ +71℃
[Download]
 PFKC05 Datasheet
 PFKC05 CE
 PFKC05 Characteristic Curves
 PFKC05 3D Drawing for SolidWorks

PMKC series
PMKC03
DC-DC
| Single | Dual |
1600VDC Isolation Voltage
Output Power : 3W
Input(VDC) : 5V 12V 24V 48V
OutPut(VDC) : Single 3.3V 5V 12V 15V
                          Dual ±5V ±12V ±15V

Operating Temperture : -25℃ ~ +71℃
[Download]
 PMKC03 Datasheet
 PMKC03 CE
 PMKC03 Characteristic Curves
 PMKC03 3D Drawing for SolidWorks

QAE series
QAE40U
DC-DC / Railway
| Single |
3000VAC Isolation Voltage
Output Power : 40W
Input(VDC) : 36V(9~75) | 72V(14~160)
OutPut(VDC) : 5V 12V 15V 24V 28V 48V 53V
Operating Temperture : -40℃ ~ +105℃
[Download]
 QAE40U Datasheet
QAE60U
DC-DC / Railway
| Single |
3000VAC Isolation Voltage
Output Power : 60W
Input(VDC) : 36V(9~75) | 72V(14~160)
OutPut(VDC) : 5V 12V 15V 24V 28V 48V 53V
Operating Temperture : -40℃ ~ +105℃
[Download]
 QAE60U Datasheet
 QAE60U Characteristic Curves
 QAE60U 3D Drawing for SolidWorks
QAE100
DC-DC
Single |
2250VDC Isolation Voltage
Output Power : 100W
Input(VDC): 12V(8.5~22) | 24V(16.5~36) | 48V(33~75)
OutPut(VDC) : 3.3V 5V 12V 15V 24V 30V 48V
Operating Temperture : -40℃ ~ +105℃
[Download]
 QAE100 Datasheet
 QAE100 CE
 QAE100 Characteristic Curves
 QAE100 3D Drawing for SolidWorks
QAE100W
DC-DC / Railway
| Single |
3000VAC Isolation Voltage
Output Power : 100W
Input(VDC) : 24V(8.5~36) | 48V(16.5~75) | 110(40~160)
OutPut(VDC) : 5V 12V 15V 24V 28V 48V 53V
Operating Temperture : -40℃ ~ +105℃
[Download]
 QAE100W Datasheet
 QAE100W CE
 QAE100W Characteristic Curves
 QAE100(W) 3D Drawing for SolidWorks
QAE100U
DC-DC / Railway
| Single |
3000VDC Isolation Voltage
Output Power : 100W
Input(VDC) : 36V(9~75) | 72V(14~160)
OutPut(VDC) : 5V 12V 15V 24V 28V 48V 53V
Operating Temperture : -40℃ ~ +105℃
[Download]
 QAE100W Datasheet
QAE150
DC-DC
| Single |
2250VDC Isolation Voltage
Output Power : 150W
Input(VDC) : 12V(8.5~22) | 24V(16.5~36) | 48V(33~75)
OutPut(VDC) : 3.3V 5V 12V 15V 24V 30V 48V
Operating Temperture : -40℃ ~ +105℃
[Download]
 QAE150 Datasheet
 QAE150 CE
 QAE150 Characteristic Curves
 QAE150 3D Drawing for SolidWorks
QAE150W
DC-DC / Railway
| Single |
3000VDC Isolation Voltage
Output Power : 150W
Input(VAC) : 24V(8.5~36) | 48V(16.5~75) | 110V(40~160)
OutPut(VDC) : 3.3V 5V 12V 15V 24V 30V 48V
Operating Temperture : -40℃ ~ +105℃
[Download]
 QAE150W Datasheet
 QAE150W CE
 QAE150W Characteristic Curves
 QAE150(W) 3D Drawing for SolidWorks

HAE series
HAE75W
DC-DC / Railway
| Single |
3000VAC Reinforced Insulation
3000VDC Isolation Voltage
Output Power : 75W
Input(VDC) : 24V(9~36) | 48V(16.5~75) | 110V(43~160)
OutPut(VDC) : 3.3V 5V 12V 15V 24V 28V 48V
Operating Temperture : -40℃ ~ +105℃
[Download]
 HAE75W Datasheet
 HAE75W CE
 HAE75W Characteristic Curves
 HAE75(W) 3D Drawing for SolidWorks
HAE100
DC-DC
| Single |
3000VDC Isolation Voltage
Output Power : 100W
Input(VDC) : 12V(9~18) | 24V(18~36) | 48V(36~75)
OutPut(VDC) : 3.3V 5V 12V 15V 24V 28V 48V
Operating Temperture : -40℃ ~ +105℃
[Download]
 HAE100 Datasheet
 HAE100 CE
 HAE100 Characteristic Curves
 HAE100(W) 3D Drawing for SolidWorks
HAE100W
DC-DC / Railway
| Single |
3000VAC Reinforced Insulation
3000VAC & 3000VDC Isolation Voltage
Output Power : 100W
Input(VDC) : 24V(8.5~36) | 48V(16.5~75) | 110V(43~160)
OutPut(VDC) : 3.3V 5V 12V 15V 24V 28V 48V
Operating Temperture : -40℃ ~ +105℃
[Download]
 HAE100W Datasheet
 HAE100W CE
 HAE100W Characteristic Curves
 HAE100(W) 3D Drawing for SolidWorks
HAE150
DC-DC
| Single |
3000VDC Isolation Voltage
Output Power : 150W
Input(VDC) : 12V(8.5~22) | 24V(16.5~36) | 48V(33~75)
OutPut(VDC) : 3.3V 5V 12V 15V 24V 28V 48V 53V
Operating Temperture : -40℃ ~ +115℃
[Download]
 HAE150 Datasheet
 HAE150 CE
 HAE150 Characteristic Curves
 HAE150(W) 3D Drawing for SolidWorks
HAE150W
DC-DC / Railway
| Single |
3000VAC Reinforced Insulation
3000VAC & 3000VDC Isolation Voltage
Output Power : 150W
Input(VDC) : 24V(8.5~36) | 48V(16.5~75) | 110V(43~160)
OutPut(VDC) : 3.3V 5V 12V 15V 24V 28V 48V
Operating Temperture : -40℃ ~ +115℃
[Download]
 HAE150W Datasheet
 HAE150W CE
 HAE150W Characteristic Curves
 HAE150(W) 3D Drawing for SolidWorks
HAE200
DC-DC
| Single |
3000VDC Isolation Voltage
Output Power : 200W
Input(VDC) : 12V(8.5~22) | 24V(16.5~36) | 48V(33~75)
OutPut(VDC) : 3.3V 5V 12V 15V 24V 28V 48V 53V
Operating Temperture : -40℃ ~ +115℃
[Download]
 HAE200 Datasheet
 HAE200 CE
 HAE200 Characteristic Curves
 HAE200(W) 3D Drawing for SolidWorks
HAE200W
DC-DC / Railway
| Single |
3000VAC Reinforced Insulation
3000VAC & 3000VDC Isolation Voltage
Output Power : 200W
Input(VDC) : 24V(8.5~36) | 48V(16.5~75) | 110V(43~160)
OutPut(VDC) : 3.3V 5V 12V 15V 24V 28V 48V
Operating Temperture : -40℃ ~ +115℃
[Download]
 HAE200W Datasheet
 HAE200W CE
 HAE200W Characteristic Curves
 HAE200(W) 3D Drawing for SolidWorks

RDL series
RDL03W
DC-DC / Railway
| Single | Dual |
3000VDC Isolation Voltage
Output Power : 3W
Input(VDC) : 24V(9~36) | 48V(18~75) | 110V(43~160)
OutPut(VDC) : Single 3.3V 5V 9V 12V 15V 24V
                         Dual ±5V ±12V ±15V

Operating Temperture : (Std) -40℃ ~ +100℃
                                       (M3) -55℃ ~ +100℃
[Download]
 RDL03W Datasheet
RDL06W
DC-DC / Railway
| Single | Dual |
3000VDC Isolation Voltage
Output Power : 6W
Input(VDC) : 24V(9~36) | 48V(18~75) | 110V(43~160)
OutPut(VDC) : Single 3.3V 5V 9V 12V 15V 24V
                         Dual ±5V ±12V ±15V

Operating Temperture : (Std) -40℃ ~ +100℃
                                       (M3) -55℃ ~ +100℃
[Download]
 RDL06W Datasheet

RED series
RED20W
DC-DC / Railway
| Single | Dual |
2250VDC Isolation Voltage
Output Power : 20W
Input(VDC) : 24V(9~36) | 48V(18~75) | 110V(43~160)
OutPut(VDC) : Single 3.3V 5V 12V 15V
                        Dual ±12V ±15V

Operating Temperture : (Std) -40℃ ~ +101℃
                                       (M3) -55℃ ~ +101℃
[Download]
 RED20W Datasheet
 RED20W CE
 RED20W Characteristic Curves
 RED20W 3D Drawing for SolidWorks

SDS / SDH series
SDS01 / SDH01
DC-DC
| Single | Dual |
3000VDC & 1600VDC Isolation Voltage
Output Power : 1W
Input(VDC) : 5V 12V 24V 48V
OutPut(VDC) : Single 3.3V 5V 9V 12V 15V 24V
                          Dual ±5V ±12V ±15V

Operating Temperture : -40℃ ~ +90℃
[Download]
 SDS(H)01 Datasheet
 SDS(H)01 CE
 SDS(H)01 Characteristic Curves
 SDS(H)01 3D Drawing for SolidWorks
SDS01W / SDH01W
DC-DC
| Single | Dual |
3000VDC & 1600VDC Isolation Voltage
Output Power : 1W
Input(VDC) : 12V(4.5~18) | 24V(9~36) | 48V(18~75)
OutPut(VDC) : Single 3.3V 5V 9V 12V 15V 24V
                         Dual ±5V ±12V ±15V

Operating Temperture : -40℃ ~ +90℃
[Download]
 SDS(H)01W Datasheet
 SDS(H)01W CE
 SDS(H)01W Characteristic Curves
 SDS(H)01W 3D Drawing for SolidWorks
SDS02 / SDH02
DC-DC
| Single | Dual |
3000VDC & 1600VDC Isolation Voltage
Output Power : 2W
Input(VDC) : 5V 12V 24V 48V
OutPut(VDC) : Single 3.3V 5V 9V 12V 15V 24V
                         Dual ±5V ±12V ±15V

Operating Temperture : -40℃ ~ +85℃
[Download]
 SDS(H)02 Datasheet
 SDS(H)02 CE
 SDS(H)02 Characteristic Curves
 SDS(H)02 3D Drawing for SolidWorks
SDS02W / SDH02W
DC-DC
| Single | Dual |
3000VDC & 1600VDC Isolation Voltage
Output Power : 2W
Input(VDC) : 12V(4.5~18) | 24V(9~36) | 48V(18~75)
OutPut(VDC) : Single 3.3V 5V 9V 12V 15V 24V
                         Dual ±5V ±12V ±15V

Operating Temperture : -40℃ ~ +80℃
[Download]
 SDS(H)02W Datasheet
 SDS(H)02W CE
 SDS(H)02W Characteristic Curves
 SDS(H)02W 3D Drawing for SolidWorks
SDS03W / SDH03W
DC-DC
| Single | Dual |
3000VDC & 1600VDC Isolation Voltage
Output Power : 3W
Input(VDC) : 12V(4.5~18) | 24V(9~36) | 48V(18~75)
OutPut(VDC) : Single 3.3V 5V 9V 12V 15V 24V
                        Dual ±5V ±12V ±15V

Operating Temperture : -40℃ ~ +71℃
[Download]
 SDS(H)03W Datasheet
 SDS(H)03W CE
 SDS(H)03W Characteristic Curves
 SDS(H)03W 3D Drawing for SolidWorks
SDS05 / SDH05
DC-DC
| Single | Dual |
3000VDC & 1600VDC Isolation Voltage
Output Power : 5W
Input(VDC) : 5V 12V 24V 48V
OutPut(VDC) : Single 3.3V 5V 9V 12V 15V 24V
                        Dual ±5V ±12V ±15V

Operating Temperture : -40℃ ~ +105℃
[Download]
 SDS(H)05 Datasheet
 SDS(H)05 CE
 SDS(H)05 Characteristic Curves
 SDS(H)05 3D Drawing for SolidWorks
SDS05W / SDH05W
DC-DC
| Single | Dual |
3000VDC & 1600VDC Isolation Voltage
Output Power : 5W
Input(VDC) : 24V(9~36) | 48V(18~75)
OutPut(VDC) : Single 3.3V 5V 9V 12V 15V 24V
                          Dual ±5V ±12V ±15V

Operating Temperture : -40℃ ~ +105℃
[Download]
 SDS(H)05W Datasheet
 SDS(H)05W CE
 SDS(H)05W Characteristic Curves
 SDS(H)05W 3D Drawing for SolidWorks

SSR series
SSR01
DC-DC
| Single |
NON Isolation Voltage
Output Power : 1W
Input(VDC) : 5V 12V 24V
OutPut(VDC) : Single 2.5V 3.3V 5V 9V 12V 15V
Operating Temperture : -40℃ ~ +105℃
[Download]
 SSR01 Datasheet
 SSR01 Characteristic Curves
 SSR01 3D Drawing for SolidWorks

UDS /UDH series
UDS01 / UDH01
DC-DC
| Single | Dual |
1600VDC Isolation Voltage
Output Power : 1W
Input(VDC) : 5V 12V 24V 48V
OutPut(VDC) : Single 3.3V 5V 9V 12V 15V 24V
                        Dual ±5V ±12V ±15V

Operating Temperture : -40℃ ~ +105℃
[Download]
 UDS(H)01 Datasheet
 UDS(H)01 CE
 UDS(H)01 Characteristic Curves
 UDS(H)01 3D Drawing for SolidWorks
UDS02 / UDH02
DC-DC
| Single | Dual |
1600VDC Isolation Voltage
Output Power : 2W
Input(VDC) : 5V 12V 24V 48V
OutPut(VDC) : Single 3.3V 5V 9V 12V 15V 24V
                         Dual ±5V ±12V ±15V

Operating Temperture : -40℃ ~ +105℃
[Download]
 UDS(H)02 Datasheet
 UDS(H)02 CE
 UDS(H)02 Characteristic Curves
 UDS(H)02 3D Drawing for SolidWorks
UDS03 / UDH03
DC-DC
| Single | Dual |
1600VDC Isolation Voltage
Output Power : 3W
Input(VDC) : 5V 12V 24V 48V
OutPut(VDC) : Single 3.3V 5V 9V 12V 15V 24V
                          Dual ±5V ±12V ±15V

Operating Temperture : -40℃ ~ +105℃
[Download]
 UDS(H)03 Datasheet
 UDS(H)03 CE
 UDS(H)03 Characteristic Curves
 UDS(H)03 3D Drawing for SolidWorks

DFEC series
DFEC15W
DC-DC / Din-Rail type
| Single | Dual |
1600VDC Isolation Voltage
Output Power : 15W
Input(VDC) : 24V(9.5~36) 48V(18~75)
OutPut(VDC) : Single 3.3V 5V 5.1V 12V 15V
                         Dual ±5V ±12V ±15V

Operating Temperture : -40℃ ~ +85℃
[Download]
 DFEC15W Datasheet
 DFEC15W CE
 DFEC15W Characteristic Curves
DFEC30
DC-DC / Din-Rail type
Single | Dual |
1600VDC Isolation Voltage
Output Power : 30W
Input(VDC) : 12V(9.5~18) 24V(18~36) 48V(36~75)
OutPut(VDC) : Single 3.3V 5V 12V 15V 24V 28V
                         Dual ±12V ±15V

Operating Temperture : -40℃ ~ +95℃
[Download]
 DFEC30 Datasheet
 DFEC30 CE
 DFEC30 Characteristic Curves
DFEC30W
DC-DC / Din-Rail type
| Single | Dual |
1600VDC Isolation Voltage
Output Power : 30W
Input(VDC) : 24V(10~40) 48V(18~75)
OutPut(VDC) : Single 3.3V 5V 12V 15V 24V 28V
                         Dual ±12V ±15V

Operating Temperture : -40℃ ~ +94℃
[Download]
 DFEC30W Datasheet
 DFEC30W CE
 DFEC30W Characteristic Curves
DFEC40
DC-DC / Din-Rail type
| Single | Dual | Triple |
1600VDC Isolation Voltage
Output Power : 40W
Input(VDC) : 12V(9.5~18) 24V(18~36) 48V(36~75)
OutPut(VDC) : Single 3.3V 5V 12V 15V 24V 28V
                         Dual ±12V ±15V
                        Triple 3.3V +12V -12V
                                  3.3V +15V -15V
                                     5V +12V -12V
                                     5V +15V -15V

Operating Temperture : -40℃ ~ +97℃
[Download]
 DFEC40 Datasheet
 DFEC40 CE
 DFEC40 Characteristic Curves
DFEC40W
DC-DC / Din-Rail type
| Single | Dual |
1600VDC Isolation Voltage
Output Power : 40W
Input(VDC) : 24V(9.5~36) 48V(18~75)
OutPut(VDC) : Single 3.3V 5V 12V 15V 24V 28V
                         Dual ±12V ±15V

Operating Temperture : -40℃ ~ +95℃
[Download]
 DFEC40W Datasheet
 DFEC40W CE
 DFEC40W Characteristic Curves
DFEC60
DC-DC / Din-Rail type
| Single |
1600VDC Isolation Voltage
Output Power : 60W
Input(VDC) : 24V(18~36) 48V(36~75)
OutPut(VDC) : Single 3.3V 5V 12V 15V 24V
Operating Temperture : -40℃ ~ +99℃
[Download]
 DFEC60 Datasheet
 DFEC60 CE
 DFEC60 Characteristic Curves

DFED series
DFED20
DC-DC / Din-Rail type
| Single | Dual |
1600VDC Isolation Voltage
Output Power : 20W
Input(VDC) : 12V(9.5~18) 24V(18~36) 48V(36~75)
OutPut(VDC) : Single 3.3V 5V 12V 15V
                         Dual ±12V ±15V

Operating Temperture : -40℃ ~ +73℃
[Download]
 DFED20 Datasheet
 DFED20 CE
 DFED20 Characteristic Curves
DFED20W
DC-DC / Din-Rail type
| Single | Dual |
1600VDC Isolation Voltage
Output Power : 20W
Input(VDC) : 24V(9.5~36) 48V(18~75)
OutPut(VDC) : Single 3.3V 5V 12V 15V
                         Dual ±5V ±12V ±15V

Operating Temperture : -40℃ ~ +78℃
[Download]
 DFED20W Datasheet
 DFED20W CE
 DFED20W Characteristic Curves

UFEC series
UFEC15W
DC-DC / Din-Rail type
| Single | Dual |
1600VDC Isolation Voltage
Output Power : 15W
Input(VDC) : 24V(9.5~36) 48V(18~75)
OutPut(VDC) : Single 3.3V 5V 5.1V 12V 15V
                         Dual ±5V ±12V ±15V

Operating Temperture : -40℃ ~ +83℃
[Download]
 UFEC15W Datasheet
 UFEC15W CE
 UFEC15W Characteristic Curves
 UFEC15W 3D Drawing for SolidWorks
UFEC30
DC-DC / Din-Rail type
| Single | Dual |
1600VDC Isolation Voltage
Output Power : 30W
Input(VDC) : 12V(9.5~18) 24V(18~36) 48V(36~75)
OutPut(VDC) : Single 3.3V 5V 12V 15V 24V 28V
                         Dual ±12V ±15V

Operating Temperture : -40℃ ~ +83℃
[Download]
 UFEC30 Datasheet
 UFEC30 CE
 UFEC30 Characteristic Curves
 UFEC30 3D Drawing for SolidWorks
UFEC30W
DC-DC / Din-Rail type
| Single | Dual |
1600VDC Isolation Voltage
Output Power : 30W
Input(VDC) : 24V(10~40) 48V(18~75)
OutPut(VDC) : Single 3.3V 5V 12V 15V 24V 28V
                         Dual ±12V ±15V

Operating Temperture : -40℃ ~ +92℃
[Download]
 UFEC30W Datasheet
 UFEC30W CE
 UFEC30W Characteristic Curves
 UFEC30W 3D Drawing for SolidWorks
UFEC40
DC-DC / Din-Rail type
Single | Dual | Triple |
1600VDC Isolation Voltage
Output Power : 40W
Input(VDC) : 12V(9.5~18) 24V(18~36) 48V(36~75)
OutPut(VDC) : Single 3.3V 5V 12V 15V 24V 28V
                         Dual ±12V ±15V
                         Triple 3.3V +12V -12V
                                  3.3V +15V -15V
                                    5V +12V -12V
                                    5V +15V -15V

Operating Temperture : -40℃ ~ +97℃
[Download]
 UFEC40 Datasheet
 UFEC40 CE
 UFEC40 Characteristic Curves
 UFEC40 3D Drawing for SolidWorks
UFEC40W
DC-DC / Din-Rail type
| Single | Dual |
1600VDC Isolation Voltage
Output Power : 40W
Input(VDC) : 24V(9.5~36) 48V(18~75)
OutPut(VDC) : Single 3.3V 5V 12V 15V 24V 28V
                         Dual ±12V ±15V

Operating Temperture : -40℃ ~ +92℃
[Download]
 UFEC40W Datasheet
 UFEC40W CE
 UFEC40W Characteristic Curves
UFEC60
DC-DC / Din-Rail type
| Single |
1600VDC Isolation Voltage
Output Power : 60W
Input(VDC) : 24V(18~36) 48V(36~75)
OutPut(VDC) : Single 3.3V 5V 12V 15V 24V
Operating Temperture : -40℃ ~ +97℃
[Download]
 UFEC60 Datasheet
 UFEC60 CE
 UFEC60 Characteristic Curves
 UFEC40 3D Drawing for SolidWorks

UFED series
UFED20
DC-DC / Din-Rail type
| Single | Dual |
1600VDC Isolation Voltage
Output Power : 20W
Input(VDC) : 12V(9.5~18) 24V(18~36) 48V(36~75)
OutPut(VDC) : Single 3.3V 5V 12V 15V 24V 28V
                         Dual ±12V ±15V

Operating Temperture : -40℃ ~ +89℃
[Download]
 UFED20 Datasheet
 UFED20 CE
 UFED20 Characteristic Curves
 UFED20 3D Drawing for SolidWorks
UFED20W
DC-DC / Din-Rail type
| Single | Dual |
1600VDC Isolation Voltage
Output Power : 20W
Input(VDC) : 24V(9.5~36) 48V(18~75)
OutPut(VDC) : Single 3.3V 5V 12V 15V
                         Dual ±5V ±12V ±15V

Operating Temperture : -40℃ ~ +75℃
[Download]
 UFED20W Datasheet
 UFED20W CE
 UFED20W Characteristic Curves
 UFED20W 3D Drawing for SolidWorks
UFED40W
DC-DC / Din-Rail type / Railway
| Single | Dual |
3000VDC & 1600VDC Isolation Voltage
Output Power : 40W
Input(VDC) : 24V(9.5~36) 48V(18~75) 110V(43~160)
OutPut(VDC) : Single 3.3V 5V 12V 15V 24V
                         Dual ±12V ±15V ±24V

Operating Temperture : -40℃ ~ +96℃
[Download]
 UFED40W Datasheet
 UFED40W CE
 UFED40W Characteristic Curves
 UFED40W 3D Drawing for SolidWorks

URED series
URED20W
DC-DC / Din-Rail type / Railway
| Single | Dual |
2250VDC Isolation Voltage
Output Power : 20W
Input(VDC) : 24V(9~36) 48V(18~75) 110V(43~160)
OutPut(VDC) : Single 3.3V 5V 12V 15V
                         Dual ±12V ±15V

Operating Temperture : -40℃ ~ +78℃
[Download]
 URED20W Datasheet
 URED20W CE
 URED20W Characteristic Curves
 URED20W 3D Drawing for SolidWorks

WAD / WAF series
WAD150W / WAF150W
DC-DC / Din-Rail type / Railway
| Single |
2250VDC Isolation Voltage
Output Power : 150W
Input(VDC) : 24V(9~36) 48V(18~75) 110V(43~160)
OutPut(VDC) : Single 12V 15V 24V 28V 48V
Operating Temperture : -40℃ ~ +100℃
[Download]
 WAF(D)150 Datasheet
 WAF(D)150 CE
 WAF(D)150 Characteristic Curves
 WAF(D)150 3D Drawing for SolidWorks
WAF300W
DC-DC / Din-Rail type / Railway
| Single |
3000VDC Isolation Voltage
Output Power : 300W
Input(VDC) : 48V(18~75) 110V(43~160)
OutPut(VDC) : Single 12V 15V 24V 28V 48V
Operating Temperture : -40℃ ~ +100℃
[Download]
 WAF300 Datasheet
 WAF300 Characteristic Curves
 WAF300 3D Drawing for SolidWorks

P-DUKE Surge Suppression Module


SSM series
SSM-110008-001
DC-DC / Railway
Clamp Input Surge Voltage
385 VDC Maximum Peak Voltage
Output Power : 151~300W
Input Range : 43~160VDC nominal battery voltage
OutPut Range : Vin-2 VDC / 8A
Operating Temperture : -40℃ ~ +105℃
[Download]
 SSM-110008-001 Datasheet
SSM-110004-001
DC-DC / Railway
Clamp Input Surge Voltage
385 VDC Maximum Peak Voltage
Output Power : 21~150W
Input Range : 43~160VDC nominal battery voltage
OutPut Range : Vin-2 VDC / 4A
Operating Temperture : -40℃ ~ +105℃
[Download]
 SSM-110004-001 Datasheet
SSM-110P50-001
DC-DC / Railway
Clamp Input Surge Voltage
385 VDC Maximum Peak Voltage
Output Power : 20W
Input Range : 43~160VDC nominal battery voltage
OutPut Range : Vin-2 VDC / 0.5A
Operating Temperture : -40℃ ~ +105℃
[Download]
 SSM-110P50-001 Datasheet









EASTONIC POWER
